DHCP CONFIGURATION PDF
This chapter describes how to configure DHCP server on the Cisco Industrial The DHCP server assigns IP addresses from specified address pools on a. DHCP (Dynamic Host Configuration Protocol). An IP address can be defined as a unique numeric identifier (address) that is assigned to each computer. DHCPOFFER: Response from a server to a DHCPDISCOVER and offering IP DHCPNACK: Negative acknowledgement from server to client, indicating that.
|Language:||English, Spanish, German|
|Genre:||Academic & Education|
|ePub File Size:||17.70 MB|
|PDF File Size:||11.29 MB|
|Distribution:||Free* [*Registration Required]|

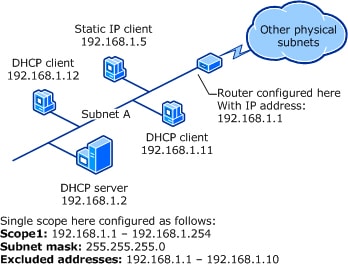

Configure a router for Dynamic Host Configuration Protocol (DHCP) to dynamically DHCP supports the concept of a "lease" whereby a server can allocate an. DHCP (Dynamic Host Configuration Protocol) automates the process of configuring the network parameters of net- work devices. This protocol is built on a. Dynamic Host Configuration Protocol (DHCP) is a standardized client/server DHCP server and DHCP clients are located on different subnets, a DHCP relay.
The numbers in parentheses indicate the size of each field in octets. The names for the fields given in the figure will be used throughout this document to refer to the fields in DHCP messages. First, DHCP defines mechanisms through which clients can be assigned a network address for a finite lease, allowing for serial reassignment of network addresses to different clients.
Second, DHCP provides the mechanism for a client to acquire all of the IP configuration parameters that it needs in order to operate.
DHCP introduces a small change in terminology intended to clarify the meaning of one of the fields. Similarly, the tagged data items that were used inside the BOOTP "vendor extensions" field, which were formerly referred to as "vendor extensions," are now termed simply "options. This change eliminates the overloading of the 'chaddr' field in BOOTP messages, where 'chaddr' is used both as a hardware address for transmission of BOOTP reply messages and as a client identifier.
The 'client identifier' is an opaque key, not to be interpreted by the server; for example, the 'client identifier' may contain a hardware address, identical to the contents of the 'chaddr' field, or it may contain another type of identifier, such as a DNS name.
If the client uses a 'client identifier' in one message, it MUST use that same identifier in all subsequent messages, to ensure that all servers correctly identify the client. A DHCP server may return its own address in the 'siaddr' field, if the server is prepared to supply the next bootstrap service e.
A DHCP server always returns its own address in the 'server identifier' option. See the options documents for a list of defined options. The options field may be further extended into the 'file' and 'sname' fields. The semantics of this flag are discussed in section 4. The remaining bits of the flags field are reserved for future use.
Chapter Dynamic Host Configuration Protocol (DHCP)
They MUST be set to zero by clients and ignored by servers and relay agents. Figure 2 gives the format of the 'flags' field. The model of DHCP persistent storage is that the DHCP service stores a key-value entry for each client, where the key is some unique identifier for example, an IP subnet number and a unique identifier within the subnet and the value contains the configuration parameters for the client. For example, the key might be the pair IP-subnet-number, hardware- address note that the "hardware-address" should be typed by the Droms Standards Track [Page 11] RFC Dynamic Host Configuration Protocol March type of hardware to accommodate possible duplication of hardware addresses resulting from bit-ordering problems in a mixed-media, bridged network allowing for serial or concurrent reuse of a hardware address on different subnets, and for hardware addresses that may not be globally unique.
Alternately, the key might be the pair IP-subnet-number, hostname , allowing the server to assign parameters intelligently to a DHCP client that has been moved to a different subnet or has changed hardware addresses perhaps because the network interface failed and was replaced. The protocol defines that the key will be IP-subnet-number, hardware-address unless the client explicitly supplies an identifier using the 'client identifier' option.
A client can query the DHCP service to retrieve its configuration parameters. The client interface to the configuration parameters repository consists of protocol messages to request configuration parameters and responses from the server carrying the configuration parameters. The basic mechanism for the dynamic allocation of network addresses is simple: a client requests the use of an address for some period of time. The allocation mechanism the collection of DHCP servers guarantees not to reallocate that address within the requested time and attempts to return the same network address each time the client requests an address.
In this document, the period over which a network address is allocated to a client is referred to as a "lease" [ 11 ]. The client may extend its lease with subsequent requests. The client may issue a message to release the address back to the server when the client no longer needs the address.
The client may ask for a permanent assignment by asking for an infinite lease. Even when assigning "permanent" addresses, a server may choose to give out lengthy but non-infinite leases to allow detection of the fact that the client has been retired.
In some environments it will be necessary to reassign network addresses due to exhaustion of available addresses. In such environments, the allocation mechanism will reuse addresses whose lease has expired. The server should use whatever information is available in the configuration information repository to choose an address to reuse.
For example, the server may choose the least recently assigned address. The first four octets of the 'options' field of the DHCP message contain the decimal values 99, , 83 and 99, respectively this is the same magic cookie as is defined in RFC [ 17 ]. The remainder of the 'options' field consists of a list of tagged parameters that are called "options". Several options have been defined so far.
This option defines the "type" of the DHCP message. Additional options may be allowed, required, or not allowed, depending on the DHCP message type. The timeline diagram in figure 3 shows the timing relationships in a typical client-server interaction.
Why Use DHCP?
If the client already knows its address, some steps may be omitted; this abbreviated interaction is described in section 3. Servers need not reserve the offered network address, although the protocol will work more efficiently if the server avoids allocating the offered network address to another client. The client may choose to wait for multiple responses.
The combination of 'client identifier' or 'chaddr' and assigned network address constitute a unique identifier for the client's lease and are used by both the client and server to identify a lease referred to in any DHCP messages.
If the client detects that the address is already in use e. The client SHOULD wait a minimum of ten seconds before restarting the configuration process to avoid excessive network traffic in case of looping. The timeline diagram in figure 4 shows the timing relationships in a typical client-server interaction for a client reusing a previously allocated network address.
The message includes the client's network address in the 'requested IP address' option. The relay agent will, in turn, forward the message directly to the client's hardware address, so that the DHCPNAK can be delivered even if the client has moved to a new network.
The client performs a final check on the parameters as in section 3. The specific lease is implicitly identified by the 'client identifier' or 'chaddr' and the network address. At this point, the client is configured. It must instead request a new address by restarting the configuration process, this time using the non-abbreviated procedure described in section 3.
Note that in this case, where the client retains its network address locally, the client will not normally relinquish its lease during a graceful shutdown. Only in the case where the client explicitly needs to relinquish its lease, e. Throughout the protocol, times are to be represented in units of seconds.
The time value of 0xffffffff is reserved to represent "infinity".
As clients and servers may not have synchronized clocks, times are represented in DHCP messages as relative times, to be interpreted with respect to the client's local clock. Representing relative times in units of seconds in an unsigned 32 bit word gives a range of relative times from 0 to approximately years, which is sufficient for the relative times to be measured using DHCP.
The algorithm for lease duration interpretation given in the previous paragraph assumes that client and server clocks are stable relative to each other. If there is drift between the two clocks, the server may consider the lease expired before the client does. To compensate, the server may return a shorter lease duration to the client than the server commits to its local database of client information.
Two techniques are used to reduce the number of parameters transmitted from the server to the client. First, most of the parameters have defaults defined in the Host Requirements RFCs; if the client receives no parameters from the server that override the defaults, a client uses those default values. The parameters returned to a client may still exceed the space allocated to options in a DHCP message.
In this case, two additional options flags which must appear in the 'options' field of the message indicate that the 'file' and 'sname' fields are to be used for options. The client can inform the server which configuration parameters the client is interested in by including the 'parameter request list' option. The data portion of this option explicitly lists the options requested by tag number. The client may include the 'requested IP address' option to suggest that a particular IP address be assigned, and may include the 'IP address lease time' option to suggest the lease time it would like.
However, additional options may Droms Standards Track [Page 21] RFC Dynamic Host Configuration Protocol March be ignored by servers, and multiple servers may, therefore, not return identical values for some options.
The server may include an error message in the 'message' option. If a client has knowledge of a previous network address and is unable to contact a local DHCP server, the client may continue to use the previous network address until the lease for that address expires.
If the lease expires before the client can contact a DHCP server, the client must immediately discontinue use of the previous network address and may inform local users of the problem. Specification of the DHCP client-server protocol In this section, we assume that a DHCP server has a block of network addresses from which it can satisfy requests for new addresses.
Each server also maintains a database of allocated addresses and leases in local permanent storage. The options area includes first a four-octet 'magic cookie' which was described in section 3 , followed by the options. A server with multiple network address e.
To accommodate potentially incomplete network connectivity, a server MUST choose an address as a 'server identifier' that, to the best of the server's knowledge, is reachable from the client. If the server is using multiple IP addresses on that subnet, any such address may be used. If the server has received a message through a DHCP relay agent, the server SHOULD choose an address from the interface on which the message was recieved as the 'server identifier' unless the server has other, better information on which to make its choice.
DHCP messages broadcast by a client prior to that client obtaining its IP address must have the source address field in the IP header set to 0. The options in the 'sname' and 'file' fields if in use as indicated by the 'options overload' option MUST begin with the first octet of the field, MUST be terminated by an 'end' option, and MUST be followed by 'pad' options to fill the remainder of the field.
Any individual option in the 'options', 'sname' and 'file' fields MUST be entirely contained in that field. The options in the 'options' field MUST be interpreted first, so that any 'option overload' options may be interpreted. The 'file' field MUST be interpreted next if the 'option overload' option indicates that the 'file' field contains DHCP options , followed by the 'sname' field.
The values to be passed in an 'option' tag may be too long to fit in the octets available to a single option e. Options may appear only once, unless otherwise specified in the options document. The client concatenates the values of multiple instances of the same option into a single parameter list for configuration.
DHCP clients are responsible for all message retransmission.
The client MUST adopt a retransmission strategy that incorporates a randomized exponential backoff algorithm to determine the delay between retransmissions. The delay between retransmissions SHOULD be chosen to allow sufficient time for replies from the server to be delivered based on the characteristics of the internetwork between the client and the server.
Clients with clocks that provide resolution granularity of less than one second may choose a non-integer randomization value. The client MAY provide an indication of retransmission attempts to the user as an indication of the progress of the configuration process.
The 'xid' field is used by the client to match incoming DHCP messages with pending requests. It is called request message because the client might deny the offer by requesting another IP address. A client will usually keep the same address by periodically contacting the DHCP server to renew the lease before the lease expires. If someone answers the ping, the DHCP Server records a conflict, the address is then removed from the DHCP pool and it will not be assigned to a client until the administrator resolves the conflict manually.
The following example configuration will complete this task:. Hi Guys!
Can anybody share latest dumps with me? Yeah DHCP message is broadcoast if you connect your hosts to one switch or organise your network within a one vlan. You can configure your network to pass DHCP requests via different subinterfaces, so it becomes not a broadcoast but a unicast message. The DHCP Acknowledgement is the last message in the exchange process already established L2 communication , therefore it is a unicast message.
It is also the message containing IP address information that is sent to the client. If it was a broadcast it will be received by multiple clients and you can end up with multiple devices having the same IP address. Hello guys! Can anybody help me to share latest dumps with me? Find out more or Sign In. How DHCP works 1. The following example configuration will complete this task: In this case the lease is 12 hours. The default is a one-day lease.
Notice this command is configured under global configuration mode. Comments 18 Comments.For example, IP requires the setting of many parameters within the protocol implementation software. Duration of the lease the time during which a client computer can use an assigned IP address. The remainder of the 'options' field consists of a list of tagged parameters that are called "options".
The delay between retransmissions SHOULD be chosen to allow sufficient time for replies from the server to be delivered based on the characteristics of the internetwork between the client and the server. The options in the 'sname' and 'file' fields if in use as indicated by the 'options overload' option MUST begin with the first octet of the field, MUST be terminated by an 'end' option, and MUST be followed by 'pad' options to fill the remainder of the field.
The timeline diagram in figure 4 shows the timing relationships in a typical client-server interaction for a client reusing a previously allocated network address. Several options have been defined so far. The client can inform the server which configuration parameters the client is interested in by including the 'parameter request list' option.
